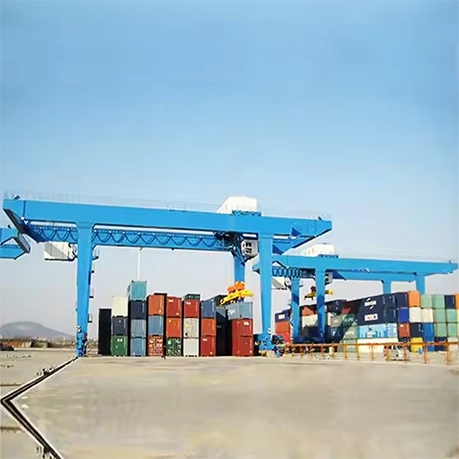

Rail-mounted gantry cranes (RMG) are specialized yard container handling machines.

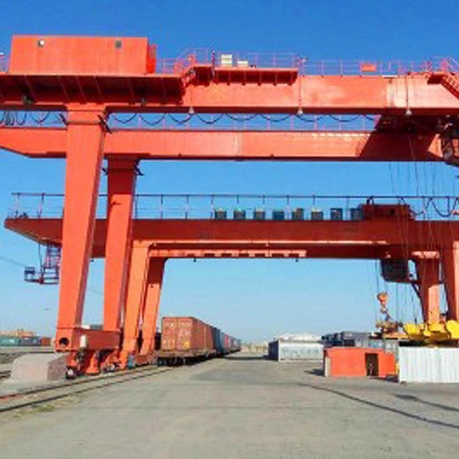

Rail Mounted Double Girder Container Gantry Crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.
lt is supported on the track by several sets of steel wheels.powered by utility electricity, and consists of large vehicle mechanism, small vehicle assembly,gantry,power system, and special spreader for containers.
Features
Specialising in providing upper rotating (trolley rotation) rail container gantry cranes, lowerrotating(spreader rotation)rail container gantry cranes, cantilevered, non-cantilevered railcontainer gantry cranes,rail container gantry cranes for railways.
Standard two-way flexible resistance anti-shaking system, optional multifunctional frequencyconversion anti-shaking micro-system and electronic anti-shaking system, anti-shaking effect isremarkable, easy to maintain, and improve the container's resistance to shaking.
CMS inteligent service management system, real-time monitoring of equipment operation status.
Vector frequency conversion, power feedback, torque balance control technology, energy saving and environmental protection, convenient and efficient.
Automatic fault detection and real-time data display technology, safe and reliable.
Provide a variety of operating modes - manual semi-automatic automation remote operation, advanced technology,stable performance.
Core technologies such as automatic operation and positioning, intelligent box-to-box, trajectoryintelligent control,intelligent safety protection.
Complete safety measures such as high wind alarm and safety dynamic scanning.
Rail mounted container gantry crane(RMG)generally includes the following units:steelframe,hoisting mechanism,minimum slewing mechanism,spreader anti-shaking mechanism,cranetravel mechanism, trolley traverse mechanism, container spreader, electrical equipments and otheraccessory equipments for safety. lnverter, PLC and CMMS (fault monitor system)are adopted by us.
Referenced standards:GB/T19683-2005 rail mounted container gantry crane,JT/T566-2004 railmounted container gantry crane safety rules,ISO standards,FEM standards and JlS standards.
Rail container gantry crane is suitable for handling and loading and unloading of internationastandard containers and railway wide containers in container yards or transfer stations of ports.wharves, railways, logistics and so on.
The Rail Container Gantry Crane is an essential piece of equipment designed for the efficient handling, loading, and unloading of international standard containers and railway wide containers. This versatile crane is specifically tailored for use in various settings, such as container yards and transfer stations, making it indispensable for modern logistics and transportation operations.
Key Application Scenarios:
Port Operations:
The Rail Container Gantry Crane is extensively employed in port facilities to streamline the loading and unloading of containers from ships. It enhances productivity by allowing for rapid transfer of goods, thereby reducing turnaround times for vessels and increasing port efficiency.
Container Yards:
In container yards, the crane plays a crucial role in the organization and storage of containers. It efficiently stacks containers, making maximum use of space while ensuring easy access for retrieval. This is particularly beneficial in managing high volumes of containers in a limited area.
Transfer Stations:
Within transfer stations, where goods are transferred between different modes of transport, the Rail Container Gantry Crane facilitates smooth transitions. It can swiftly move containers from railway cars to trucks (or vice versa), ensuring seamless intermodal logistics.
Logistics Hubs:
The crane's adaptability makes it ideal for logistics hubs where various products and containers must be sorted and redistributed. By improving the flow of containers, it reduces delays and enhances overall supply chain efficiency.
Railway Integration:
The ability to handle railway wide containers makes the Rail Container Gantry Crane a vital asset in railway operations. It not only aids in loading and unloading at railway terminals but also supports the efficient management of freight transported by rail.
Conclusion:
The Rail Container Gantry Crane is integral to the modern cargo handling industry. Its capabilities make it suitable for diverse operational settings, enhancing efficiency, safety, and productivity in the transportation and logistics sectors. Whether at ports, container yards, or transfer stations, this crane is essential for facilitating the swift movement of goods across various transport modes.
