Electric tyre gantry crane (hereinafter referred to as crane) is designed and manufactured in accordance with national and industry standards
such as GB/T 3811-2008 Crane Design Specification, GB/T 14406-2011 General Gantry Crane, GB/T 14783 Tire Container Gantry Crane etc.
The crane moves and turns on the ground, the trolley moves on the track, and the hooks rise and fall to carry the materials.
The working environment temperature is -20 ℃ ~ 45 ℃, the average temperature within 24 hours is not more than 35 ℃, relative humidity is
allowed temporarily up to 100% when the average temperature in 24 hours exceeds 25 ℃, and not more than 50% for the temperature of 45 ℃.
Crane power supply is three-phase AC with rated frequency of 50 Hz and rated voltage of 380V. The upper and lower limits of the permissible
voltage fluctuation of the motor are ±10%. The loss of the internal voltage of the crane is not greater than 5%.
Why Choose Rubber Tyre Container Gantry Crane?
1. Strong beams: One time foreminf without welding beam U frame, and carefully welding of the whole beams.
This result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads.
2. End carriage: Crane travelling system, motor-reducer-wheel driven system! & Soft start motor which result in very stable starting!
3. Durable performance and high efficiency!
4. Outstanding heat resistance with thermal-protective coating added at the bottom of the main beam!
5. Electrical equipment: Electric systems are Siemens brand or Schneider brand! What's more, we adopted Inverter, PLC and CMMS ( fault monitor system)!
6. Special design spreader suitable for lifting 20feet, 40feet and 45feet! And we can design non-standard type according to customers' demands.
7.Long service life with a low-maintenance!
Details and Application
Any time, any need, welcome you to contact us for details!
My time is your time! & We will give you the best service!
It's better to give below detail parameters when you send enquiry to us:
1. Lifting capacity:___?tons or what type cntainers you need to lift
2.Span:___meters ( Distance between two wheel centers)
3.Lifting height:__?meters
4.Work duty: __?hours you need the crane to work? what's the full load percentage?
5.Power supply: __?V __?HZ
YunTian Group has a team of enthusiastic young people who treat every customer as their friend.Employees mutual help to service the customers
from every detail So you can get not only highquality products but personalized service.
① 35 years of Engineering Experiencea
② Sales Team of More Than 70
③ Professional R&D Team
④ Reliable QC System
⑤ Considerable After-sale Service

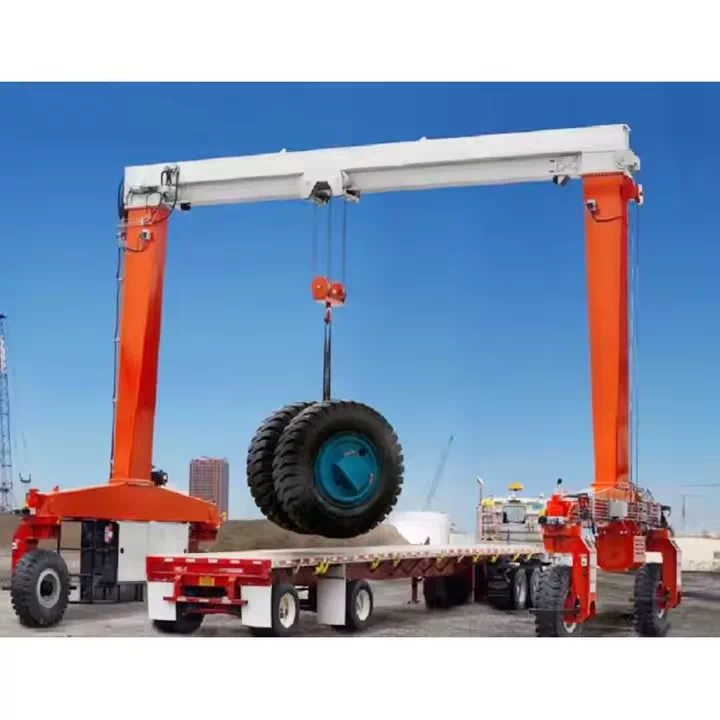

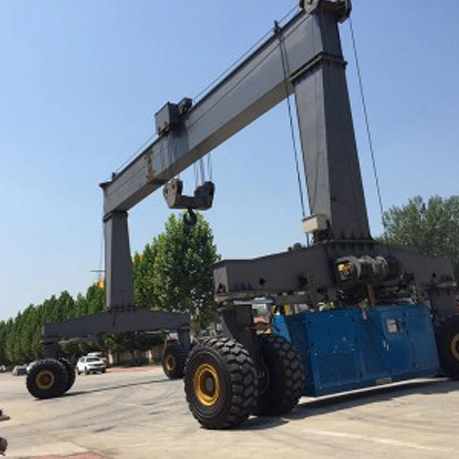

Rubber tyre container gantry crane applies to international standard container transporting, loading and unloading at the container yard and railway container depots, with stable performance, high efficiency and ease maintenance having proper safety instructions and overload protection devices to maximizely ensure the safety of operational personnel and equipment. Electrical system uses PLC frequency adjustment which can easily control every mechanism.
Application Scenarios for Single Girder Rubber Tyre Crane
The Single Girder Rubber Tyre Crane is designed to enhance efficiency and safety in various applications, particularly in container handling at logistics hubs. Below are several key scenarios where this versatile crane proves invaluable:
1. Container Yard Operations
In busy container yards, the Single Girder Rubber Tyre Crane is ideal for loading and unloading standard international containers from trucks or storage platforms. Its robust rubber tyres provide excellent mobility, allowing seamless movement between different areas of the yard, optimizing space utilization and streamlining operations.
2. Railway Container Depots
This crane is particularly effective in railway container depots where it can manage the rapid transfer of goods between trains and storage areas. The flexibility of its rubber tyre configuration allows it to navigate the often congested layout of rail yards, ensuring efficient and timely loading and unloading of containers.
3. Intermodal Transport Facilities
With the rise of intermodal transport systems, the Single Girder Rubber Tyre Crane plays a crucial role in facilitating the transfer of containers between different transport modes. Whether moving containers from ships to trucks or vice versa, its adaptability and speed help reduce turnaround times, thereby enhancing overall logistics efficiency.
4. Industrial Warehousing
In industrial warehousing settings, this crane can be utilized for the handling of bulk materials and containers. Its stable performance ensures that heavy loads are managed safely and efficiently, minimizing the risk of damage to both containers and stored goods. The crane’s ease of maintenance means that it can remain operational with minimal downtime, further boosting productivity.
5. Port Operations
In port environments, the Single Girder Rubber Tyre Crane can function as a critical link in the supply chain. Its ability to easily maneuver between large vessels and storage areas allows for effective cargo handling, helping ports keep pace with the demands of modern shipping traffic.
Safety and Reliability Features
The design incorporates multiple safety features, including proper safety instructions, overload protection devices, and an advanced electrical system supported by PLC frequency adjustment for precise control. These features not only protect operational personnel and equipment but also ensure compliance with international safety standards, fostering a secure working environment.
By integrating the Single Girder Rubber Tyre Crane into these varied operational scenarios, businesses can significantly enhance their efficiency, safety, and overall performance in container handling and logistics management.
