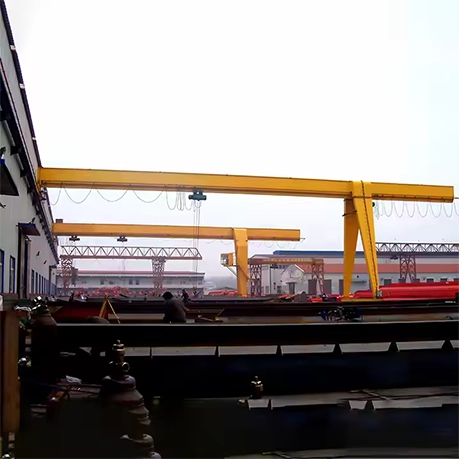

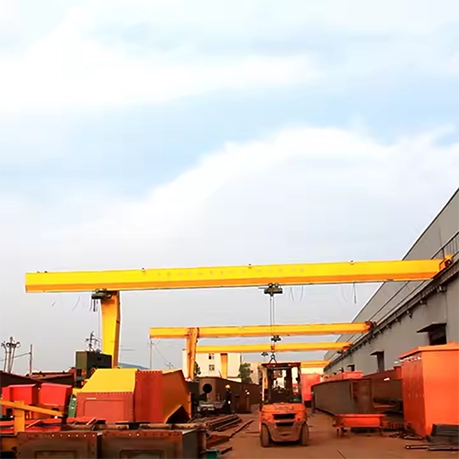

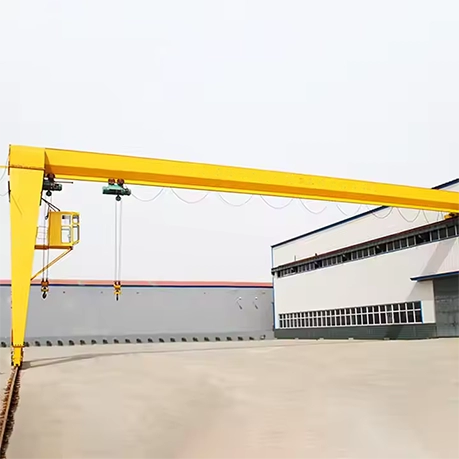

MB semi-gantry crane with electric hoist
The semi-gantry crane with electric block,a type of middle- and small-size lifting equipment which runs along rails, is mainly composed of gantry (girder,leg, lower cross beam etc.), hoisting mechanism, travelling mechanism and electric control part.With the electric hoist as hoisting mechanism, it runs along the lower flange of the I-steel of the girder. The gantry has a leg at its one side and runs along the ground rails, and has no leg at the other side and runs along the rails on the factory workshop.The rest structure and configuration are the same as the MH gantry crane with elecıric block.
Main Features of BMH model Gantry Crane:
1. Simple and compact structure, steady performance.
2. Easy to install and high efficiency.
3. Overload, low voltage protective device.
4. Pendent control and remote control.
5. Easy maintenance.
6. Preventing hook clashing the top, set shields and barriers.
7. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.
8. Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
9. Anti-collision, sound and light alarm devices. Equipped with rail clamp.
About us
Henan Mine Crane Co., Ltd,located in crane hometown of China, is a share-holding industry enterprise with research,
manufacturing and sales together, its 4,227-plus-member factory covers over 1,620,000 square meters.
The products are sold in over 30 provinces, municipalities and autonomous regions and exported to such countries as America,
Russia, Australia, Vietnam, India and Thailand. With an annual sales volume of over 4,000 gantry cranes, over 35,000 single-girder
cranes as well as about 46,000 single- and double-girder electric hoists and their accessories, the company ranks among the top
in the lifting machine industry in terms of per capita output value and economic benefit. The company has obtained over 120
honors and certificates, including “Hi-tech Enterprise”.
Quality makes brand, honesty weaves the future. Hold the hands of Mine Crane and we will be friends forever!
BMH(G) type semi gantry crane is widely used in open warehouse,mechanical processing workshop, outdoor place for loads lifting and transporting. Semi-gantry cranes are mainly used in steel, forest products, intermodal, biomass/pellet, concrete and many other industries, both indoor and outdoor are suitable. If used outdoor, sometimes, semi gantry cranes will be equipped with truss type outriggers.
Product Application Scenarios for Single Girder Hoist Semi Gantry Crane
The BMH(G) type semi gantry crane is an essential lifting solution designed for a variety of industrial applications. Its versatile functionality, coupled with its robust construction, makes it ideal for both indoor and outdoor environments. Below are some key application scenarios where the semi gantry crane excels:
1. Open Warehousing
In open warehouses, the BMH(G) semi gantry crane efficiently handles the lifting and movement of heavy materials. Its design allows it to cover large areas, making it well-suited for managing bulk items such as pallets and containers. Whether it’s loading goods onto trucks or organizing products within the warehouse, this crane enhances operational efficiency.
2. Mechanical Processing Workshops
In mechanical processing workshops, the semi gantry crane is invaluable for lifting heavy machinery components and finished products. Its precision and ease of operation allow for seamless workflow in manufacturing processes, reducing the risk of strain injuries among workers while improving productivity.

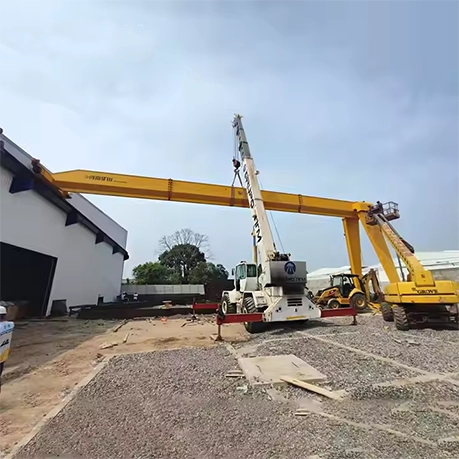

3. Outdoor Construction Sites
For outdoor applications, the BMH(G) crane can be utilized in various construction tasks, including assembling prefabricated components or handling structural elements like steel beams and concrete blocks. When used outdoors, it can be modified with truss-type outriggers to provide additional stability, ensuring safe operations even in challenging weather conditions.
4. Steel Industry
In the steel industry, the semi gantry crane plays a crucial role in moving heavy steel products, including beams, plates, and coils. Its capacity to lift substantial loads makes it indispensable for facilitating the smooth transition of materials along the production line, from the warehouse to processing stations.
5. Forest Products and Timber Yard
The versatility of the BMH(G) crane extends to the forest products sector, where it is used for handling lumber and other related materials. Its lightweight design and mobility enable efficient stacking, loading, and transporting of timber, significantly enhancing productivity in timber yards.
6. Intermodal Transport Facilities
At intermodal transportation hubs, semi gantry cranes assist in the efficient transfer of cargo between different modes of transport, such as trucks, trains, and ships. Their adaptability makes them perfect for quick and effective loading and unloading, ensuring that operations run smoothly and on schedule.
7. Biomass and Pellet Industries
In the biomass and pellet industries, the crane facilitates the loading and movement of raw materials and finished products. Its reliable lifting capabilities help streamline processes, whether for storage or transportation, ultimately contributing to more effective operations in renewable energy sectors.
8. Concrete and Construction Materials Handling
In environments dealing with concrete and other heavy construction materials, the semi gantry crane is utilized for lifting and transporting heavy blocks, molds, and precast elements. Its robust lift features and stability ensure safe handling, minimizing the risk of accidents on-site.
Conclusion
The BMH(G) type semi gantry crane is a flexible and reliable solution for a broad range of industries and applications. With its ability to navigate both indoor and outdoor environments, alongside optional enhancements for outdoor use, this crane maximizes operational efficiency and safety across various sectors. Whether in warehouses, workshops, construction sites, or industrial facilities, the BMH(G) crane stands out as a valuable asset for lifting and transporting loads effectively.
