Single Jib Portal Crane
Capacity:
10~200t, According to your demand
Lifting Height:
20m, According to your demand
Span:
According to your demand
Working Class:
A4,A5,A6,A7
Outreach:
10~40m
file Product manual download
Apply:
Authentication mark:
CCC
CE
ABS
BV
CCS
Submit your demands:
Capacity:
Lifting Height:
Span:
Working Class:
  • A4
  • A5
  • A6
  • A7
Outreach:
SUBMIT
ONLINE CHAT
HOT PRODUCTS
Product Overview

Port crane to facilitate multiple cranes to work side by side on the same ship, the gantry crane with rotating column connected to the vertical column, or the rolling bearing type bearing slewing device connected to the gantry through the large bearing, is generally used to reduce the tail diameter of the rotating part, and the gantry structure is used to reduce the pier cover surface (the projection of the gantry main body to the ground). In the process of development, gantry crane is also gradually popularized and applied to the shipyard and hydro power station construction site with similar operating conditions to the port.

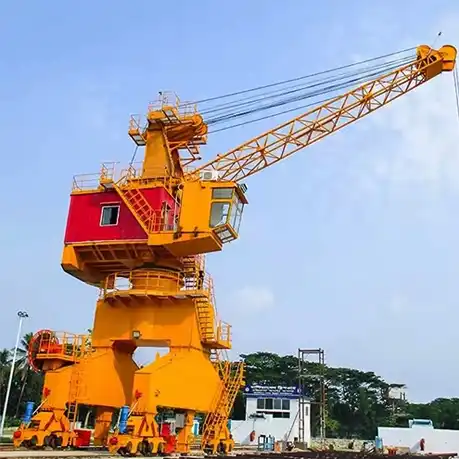

Port crane has lifting, slewing, luffing and running mechanisms, the first three mechanisms installed on the rotating part, every week to participate in the operation. The rotating part is also equipped with a tilt single boom or combination boom that can be pitched and the driver's cab. The operating mechanism is installed at the lower part of the gantry to adjust the working position of the crane. The port crane with brackets is also equipped with telescopic funnel, belt conveyor and other additional equipment to improve the productivity of the crane handling loose materials with the grab bucket. In addition to the electrical protection device, also equipped with lifting weight or lifting moment limiter, crane rail clamp and other safety devices.

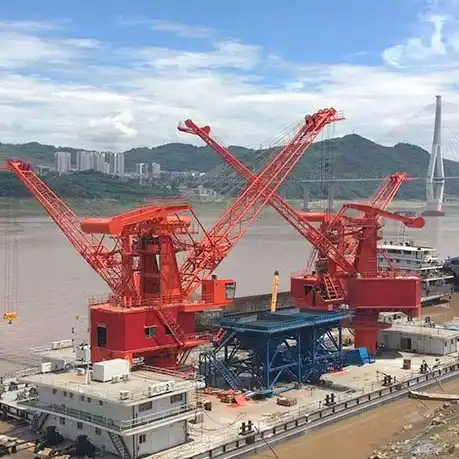

Floating cranes are installed on the vessel and are mainly used for cargo loading and unloading operations. The implementation of the norms for the CCS “ships and offshore installations lifting equipment code” (2007) and 2010 amendments to the circular. This machine is a floating crane with single jib balanced change wheel set compensating rack and pinion luffing. It mainly consists of hoisting mechanism, luffing mechanism, slewing mechanism, jib system, column, turntable, machine room, driver's room, supporting cylinder, ladder railing system, electrical control system and other auxiliary devices. The machine can be operated by hook or grab, and can be loaded for horizontal displacement amplitude and 3602 angle slewing, lifting and amplitude change, the slewing mechanism can be operated jointly, lifting, amplitude change, rotating with AC frequency conversion speed control, and all the institutions are set up with the necessary limit switches and interlocking protection devices.


FAQ

1. Who are we?

We are based in Henan, China, start from 2009,sell to Africa(23.00%),South America(21.00%),Mid East(14.00%),Southeast Asia(11.00%),North America(7.00%),South Asia(6.00%),Domestic Market(5.00%),

Eastern Europe(5.00%),Southern Europe(4.00%),Oceania(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Overhead crane,Gantry crane,Jib crane,Winch&Hoist,Special lifting equipments

4. Why should you buy from us not from other suppliers?

1. More than 6 years crane exporting experience with more than 40 elite team.

2. Enough experience on large crane project.

3. Supply 900tons capacity crane.

4. Afer sale service.

5. Exporting our crane to more than 100 countries.

6. Installation team.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW;

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian


Application Scenario

Portal crane has been widely used in port, yard, station, stack and so on. In order to quicken the turnover of the vehicle, the operation of loading and unloading, transshipment of goods on the shipping and car needs high efficiency.


Applicable Industries

Home Use, Energy & Mining, Other, Construction Works, harbor.


Product Application Scenarios for Single Jib Portal Crane


The Single Jib Portal Crane is a versatile piece of equipment that finds extensive application across various industries, especially in environments requiring efficient material handling and transportation. Below are the detailed application scenarios where this crane excels:


1. Ports and Shipping Yards

In ports, the Single Jib Portal Crane plays a crucial role in enhancing operational efficiency. It is instrumental in loading and unloading containers from ships to trucks or storage areas. Its design allows for swift turnaround times, making it essential for managing high volumes of maritime traffic. The crane's ability to operate in confined spaces maximizes the use of available area, ensuring that goods are moved quickly and safely.


2. Construction Sites

On construction worksites, the Single Jib Portal Crane is invaluable for lifting and positioning heavy materials such as steel beams, concrete blocks, and machinery. Its reach and lifting capacity facilitate the assembly of structures at various heights and distances, which is vital for timely project completion. The crane's maneuverability allows it to navigate complex job sites, contributing to streamlined construction processes.


3. Industrial Yards and Warehousing

In industrial yards, this crane is utilized for the efficient stacking and unstacking of goods in warehouses. It significantly speeds up the transshipment of materials, providing a reliable solution for inventory management and storage. The Single Jib Portal Crane is ideal for handling bulk materials and oversized items, making it a key asset in logistics operations.


4. Energy & Mining Sector

The energy and mining industries benefit from the crane's ability to handle heavy loads associated with the extraction and transportation of resources. It is equipped to manage the lifting of heavy machinery and raw materials, ensuring that operations run smoothly without delays. This versatility makes it a critical component in maintaining productivity in these sectors.


5. Home and Small Business Use

While primarily designed for industrial applications, the Single Jib Portal Crane can also be adapted for home use and small businesses that require material handling solutions. It can assist in lifting heavy furniture, equipment, or supplies, providing homeowners and entrepreneurs with the means to simplify complex lifting tasks.


Conclusion

The Single Jib Portal Crane stands out as a highly efficient solution for a plethora of applications across multiple industries. Its ability to enhance workflow, improve safety, and handle heavy loads makes it an indispensable tool in ports, construction sites, industrial yards, and beyond. By investing in this crane, businesses can significantly improve their operational efficiency and meet the increasing demands of modern logistics and material handling.
