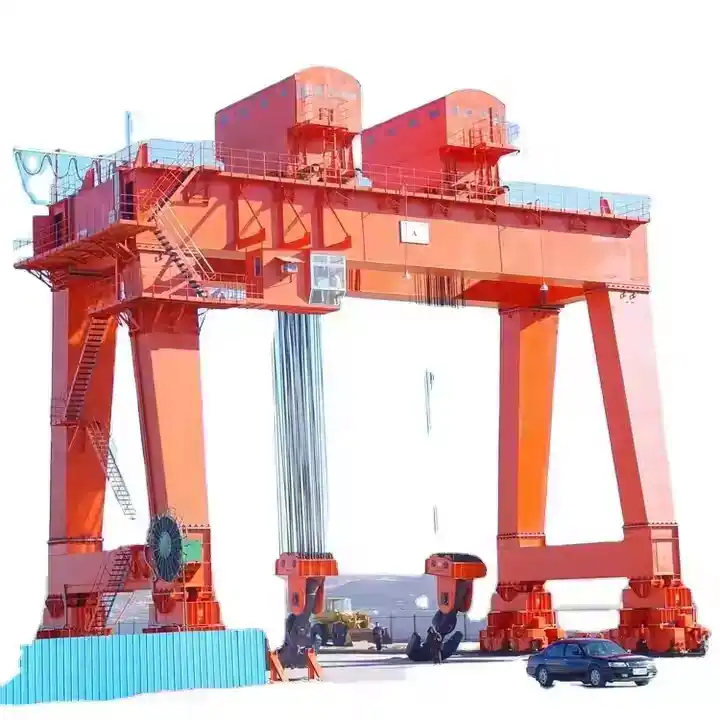

Rubber Tyre Container Gantry Crane
Capacity:
10~90t, According to your demands
Lifting Height:
30m, According to your demands
Span:
18~30m, According to your demands
Working Class:
A6,A7
file Product manual download
Apply: Application:Factories , freight yards
Authentication mark:
CCC
CE
Submit your demands:
Capacity:
Lifting Height:
Span:
Working Class:
  • A6
  • A7
SUBMIT
ONLINE CHAT
HOT PRODUCTS
Product Overview

Supported on inflatable rubber tires and often powered by diesel generators, it can also be powered by cable reels, lithium batteries, etc. lt is composed of a crane mechanism, a trolley assembly, a gantry frame, a power system, and specialized container lifting tools. Design, manufacturing, and inspection shall comply with the latest domestic and internationastandards such as FEM, DIN, IEC, AWS, GB, etc.


RTG has diverse functions, high efficiencystability and reliability, wide operating range, good maneuverability, low sensitivity to ground roughness, convenient use, maintenance, and upkeep. lts biggest feature is that it can travestraight,crosswise,0-90 degree turn, and turn in place. Equipped with comprehensive safety instructions and overload protection devices, it maximizes the safety of operators and equipment. The electrical drive adopts the unique technology of fully digital. AC frequency conversion and PLC control speed regulation, which is flexible and precise in control. Standard configuration of purchased parts from well-known domestic and foreign brands ensures the quality of the entire machine.


Features

  1. The company provides a variety of power combination solutions (diesel units, mains power, low.power diesel units+lithium batteries), which are energy-saving and environmentally friendly.

  2.  The standard configuration is a bidirectional flexible resistance anti roll system, with optional multi-functional variable frequency anti roll micro motion system and electronic anti roll system. The anti roll effect is significant, maintenance is convenient, and the anti roll performance of the container is improved.

  3. CMS intelligent service management system, real-time monitoring of equipment operation status.

  4. Vector frequency conversion, power feedback (when powered by mains or lithium batteries)torque balance control technology,energy-saving, environmentally friendly, convenient andefficient.

  5. Automatic fault detection and real-time data display technology, safe and reliable.

  6. Unique crane deviation correction and fine tuning technology, personalized steering, jacking, andanti roll design for the crane.

  7. Provide multiple operation modes - manual, semi-automatic, automatic and remote operationwith advanced technology and stable performance.

  8. Equipped with core technologies such as automatic operation positioning, inteligent box to boxlanding,intelligent trajectory control, and intelligent security protection;9. Various safety measures such as strong wind alarm and safety dynamic scanning are complete.


Industry-specific attributes

· Brand Name: SGY

· Core Components: Engine, motor, Gear, Door frame, Electric system, Wheel.

· Warranty: 1 Year

· Main electrical parts: Siemens or other international brands

· CE,ISO,BV ,GOST: Pass


1. Strong beams: One time foreminf without welding beam U frame, and carefully welding of the whole beams.

This result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads.

2. End carriage: Crane travelling system, motor-reducer-wheel driven system! & Soft start motor which result in very stable starting!

3. Durable performance and high efficiency!

4. Outstanding heat resistance with thermal-protective coating added at the bottom of the main beam!

5. Electrical equipment: Electric systems are Siemens brand or Schneider brand! What's more, we adopted Inverter, PLC and CMMS ( fault monitor system)!

6. Special design spreader suitable for lifting 20feet, 40feet and 45feet! And we can design non-standard type according to customers' demands.

7.Long service life with a low-maintenance!


Application Scenario

Rubber tire type container gantry crane is suitable for handling and loading and unloading international standard containers in container yards or transfer stations such as ports, docks, and logistics


Rubber tyre container gantry crane applies to international standard container transporting, loading and unloading at the container yard and railway container depots, with stable performance, high efficiency and ease maintenance having proper safety instructions and overload protection devices to maximizely ensure the safety of operational personnel and equipment. Electrical system uses PLC frequency adjustment which can easily control every mechanism.


Application Scenarios for Rubber Tyre Container Gantry Crane


The Rubber Tyre Container Gantry Crane (RTCGC) is specifically designed to enhance efficiency and safety in various logistical applications, making it a vital piece of equipment in today’s fast-paced material handling environment. Its versatility and robust design make it suitable for multiple scenarios, particularly in environments that require the transportation, loading, and unloading of international standard containers. Here are some key application areas where the RTCGC excels:


Container Yards:

In container yards, RTCGCs play a crucial role in managing the flow of cargo. These cranes efficiently move containers between stacks and transport them to and from delivery trucks. Their rubber tire mechanism offers the mobility required to navigate tight spaces, maximizing the utilization of yard space while reducing the risk of damage to containers. The ability to handle multiple containers in a short timeframe contributes significantly to productivity.


Ports and Docks:

At ports and docks, the RTCGC facilitates the seamless transfer of containers from ships to land transport and vice versa. Its high loading and unloading speeds minimize waiting times for vessels, thereby promoting faster turnaround and improved operational efficiency. The crane’s advanced safety features, including overload protection, ensure safe operation in these high-stakes settings where heavy containers are routinely handled.


Railway Container Depots:

In railway container depots, RTCGCs are essential for the swift loading and unloading of containers from trains. Their ability to maneuver easily across tracks and adapt to the dynamic environment of rail yards makes them indispensable. The crane can efficiently manage the transfer of containers between rail cars and storage areas, ensuring the timely shipment of goods and reducing delays in the supply chain.


Logistics Centers:

Within logistics centers, the environmental adaptability of the RTCGC enhances the internal handling processes. By streamlining the movement of containers from inbound to outbound logistics, these cranes help optimize warehousing operations. Their ease of maintenance and reliability ensure minimum downtime, allowing logistics providers to meet tight delivery schedules.


Intermodal Transport Facilities:

RTCGCs are also beneficial in intermodal transport facilities, where they facilitate seamless transitions between different modes of transportation, such as ship, truck, and rail. This capability helps in consolidating logistics processes and improving overall operational efficiency.


Trade Hubs and Distribution Centers:

In trade hubs and distribution centers, the Rubber Tyre Container Gantry Crane enhances the movement of goods through its flexible design and robust functionality. It allows operators to handle a variety of container sizes and weights, making it a versatile tool in the ever-evolving logistics landscape.


In conclusion, the Rubber Tyre Container Gantry Crane is an indispensable asset in modern logistics and material handling operations. Its ability to provide stable performance, high efficiency, and ease of maintenance makes it uniquely suited for various applications, ranging from container yards and ports to railway depots and logistics centers. Coupled with advanced electrical systems that facilitate easy control, RTCGCs are essential for ensuring safe and efficient operations in the dynamic world of container handling.
