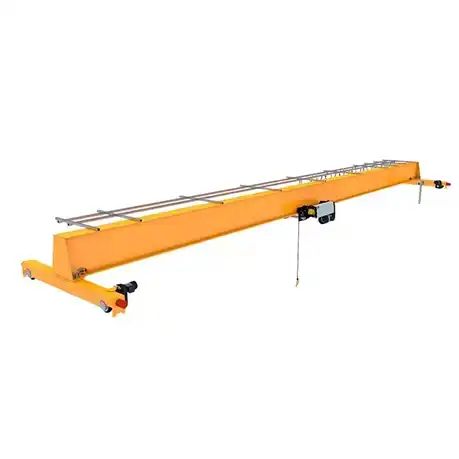

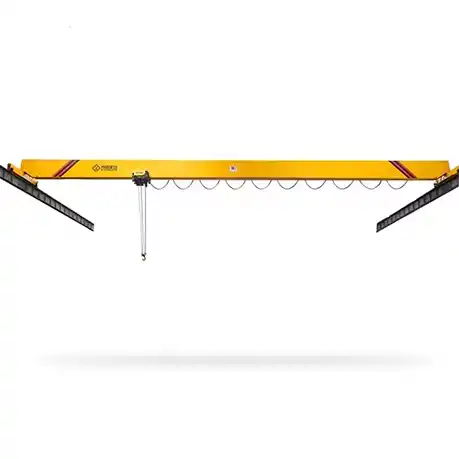

European single girder overhead crane is a kind of new generation crane with intelligent feature. The lifting mechanism is European style ND steel wire rope electric hoist . The lifting speed is double. And Cross & long traveling use infinitely variable frequency motor which make the crane travel smoothly. The crane design is based on FEM,DIN, ISO standard, which is extremely safe, ergonomic, convenient, and efficient for material transport. The design of hoisting mechanism strictly carries out the relevant standards of FEM. Its compact size structure could save lots of space.
Product Features: 1.Light weight. 2.Small occupied space. 3.Low operation cost. 4.High working performance.
Product Advantages: 1.With aluminum aloy shell of reducer. 2.Steady running and low noise. 3.Lifetime lubricating (within safety service circle). 4.Double-disk electromagnetic brake.
Heavy Duty New Type Single Girder Overhead Crane for Euro Design
Features
Optimal Structure Designing for main box girder.

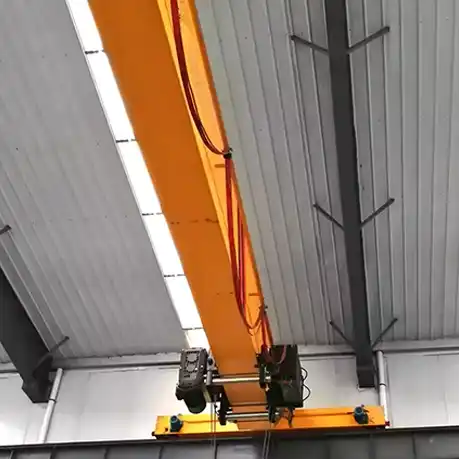

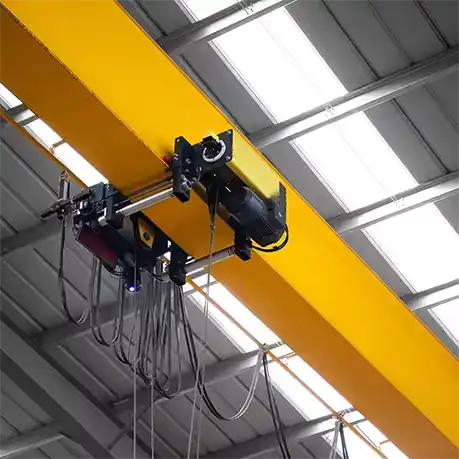

Compact Size Hoist Trolley and reasonable hook design make more space for working.
Unique Wheel Frame Design help the adjust the balance and installation. The full structure is more realizable and durable.
Motor Protect Class IP54, F class insulation. The overload protection device included.
Special designed gear box adapt helical gear, self-lubricating.
Two control ways. Pendent control panel could contact with hoist trolley or move indigently by the main girder guide.
The steeples lift or travel speed could be controlled by the control panel. Remote control make operator free moving on ground.
Thousands of frequency points make cranes in one workshop working without Suffering Interference.
Customization:
We can design cranes meets your need, it would be very kind of you to give us the data needed listed below:
1. lifting capacity.
2. span length.
3. lifting height.(hook center to ground)
4. Power supply: Voltage.
5. Do you need rails? How long is the crane traveling distance?
6. Working condition: which material to lift? temprature?
7. Would be better if you have drawings of your plant.

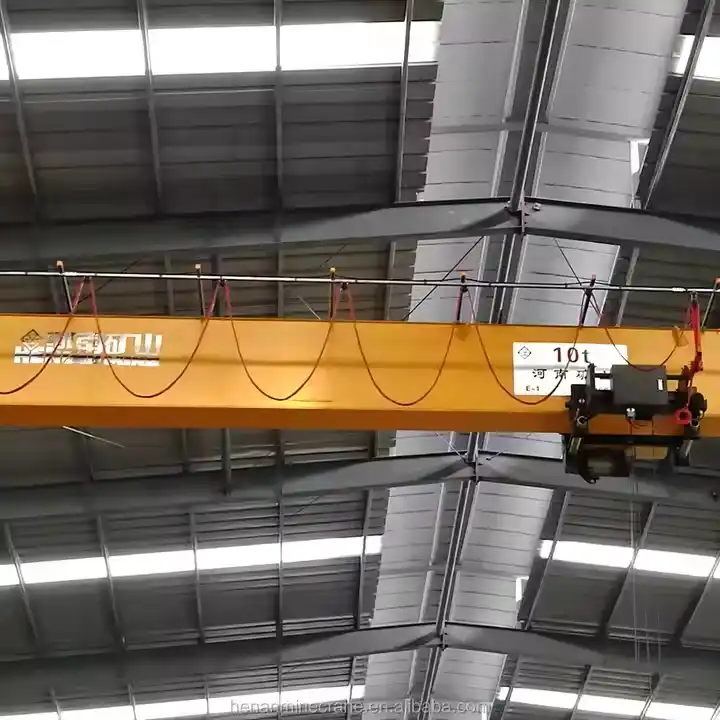

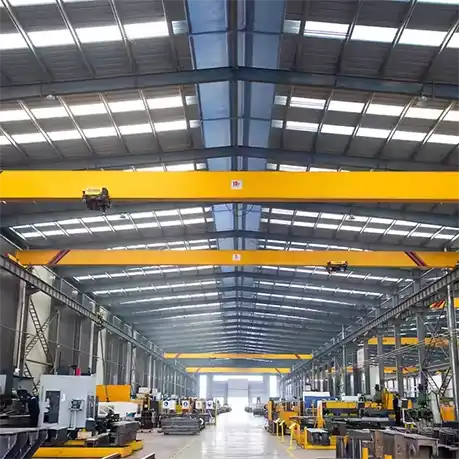

Electric single girder European Hoist Type Overhead Crane could be widely used to handle materials in many industries' workshop and warehouse. Such as machinery manufacture, warehouse, logistic, food, paper making, electronics industries workshop and other material handling situations.
As the core component of driving mechanism, reducer gear pair with hard tooth surface and high accuracy, together with steel reel, forged wheel and variable-frequency speed regulating system, which makes this type of crane become renewal product of traditional general bridge crane and applied in industry of machinery production, assembling, petrochemicals, warehouse logistics, electric power construction, papermaking and railways.
Based on bringing in and assimilating foreign advanced technology, this typeof crane takes modular design theories as guidance, uses modern computer technology as means, introduces optimized and reliable design methods, whichis new type of crane made by employing import configuration, new material and technology and has features in light-weight, generalizing, energy-conservation and environmental protection, maintenance free and high technology content.
