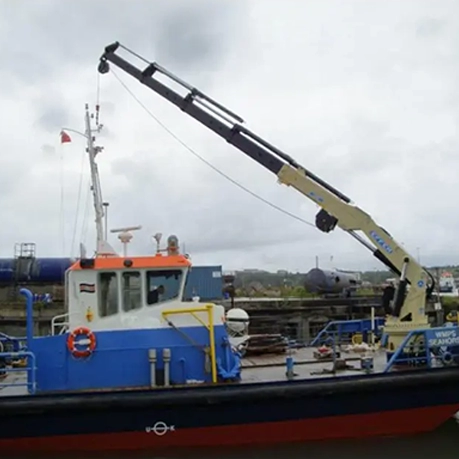

Marine Knuckle Boom Crane
Capacity:
1~30t, According to your demand
Lifting Height:
According to your demand
Outreach:
10~20m
Arm Type:
Folding Arm
file Product manual download
Apply: Marine, Port
Authentication mark:
CCC
CE
ABS
BV
CCS
Submit your demands:
Capacity:
Lifting Height:
Outreach:
Arm Type:
SUBMIT
ONLINE CHAT
HOT PRODUCTS
Product Overview

The marine folding boom crane consists of a base, a slewing platform, a basic arm, a folding arm.and a winch. Usually used to lift various conventional goods.Standard cranes have lifting capacities ranging from two to ten tonnes, with outreaches of up to 20m. Higher capacities are available upon request. The crane is controlled from an operator platform above the slewing ring, with radio remote controlavailable as an option.

The crane controls provide smooth and precise movements of all crane motions. Two motions canbe performed simultaneously, but at reduced speeds. Haitai Marine Folding Knuckle Boom Crane Consists Of A Base, A Slewing Platform, A Basic Arm, A Folding Arm. And A Winch. Usually Used To Lift Various Conventional Goods. Standard Cranes Have Lifting Capacities Ranging From 2 To 50 Tonnes, With Outreaches Of Up To20m. The Folded Boom Leaves More Room For Work On The Deck.Higher Capacities Are Available Upon Request. The Crane Is Controlled From An Operator Platform Above

The Slewing Ring, With Radio Remote Controlavailable As An Option.


Standard features:

· Self-contained with integrated electro-hydraulic power packPrecise stepless speed control.

· Easy maintenance.

· 360 degree continuous slewing.

· Emergency lowering.


Optional features:

① Star-delta starter for low starting currentseLimit switches for slewing and hoisting

② External power pack

③ Floodlights

④ Portable radio electric remote control unit

⑤ Different pedestal heights

⑥ Enclosed operator cabin

⑦ Designed for extremely low temperatures (Arctic climate)

⑧ Personnel handling

⑨ Load monitoring system

⑩ Other features available upon request


Specification

  1. Warranty of core components: 1.5 years

  2. Core Components: Engine, Bearing, Gearbox, Motor, Gear, Pump

  3. Type: Knuckle boom crane

  4. Slewing angle: Color: Customer Requirements360 Degree Hydraulic Slewing

  5. Material: Q235

  6. Control system: Remote Radio Controller



Package:

1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;

2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.

Delivery:

1. If the size of whole crane are suitable for container ship, usually by container;

2. If the size is too big, usually by bulk ship or by container after truncation;

3. Transport ways are based on reducing cost for you and keep the crane performance!


FAQ

1. Who are we?

We are based in Henan, China, start from 2009,sell to Africa(23.00%),South America(21.00%),Mid East(14.00%),Southeast Asia(11.00%),North America(7.00%),South Asia(6.00%),Domestic Market(5.00%),

Eastern Europe(5.00%),Southern Europe(4.00%),Oceania(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Overhead crane,Gantry crane,Jib crane,Hoist,Special lifting equipments

4. Why should you buy from us not from other suppliers?

1. More than 6 years crane exporting experience with more than 40 elite team.

2. Enough experience on large crane project.

3. Supply 900tons capacity crane.

4. Afer sale service.

5. Exporting our crane to more than 100 countries.

6. Installation team.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW;

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,French,Russian

Application Scenario

This Crane Has The Advantages Of Small Footprint, Compact Structure, Flexible Maneuvering, High Loading And Unloading Efficiency,360 Degreerotation,Can Meet Your Cargo On The Cargo Ship Flexible Handling.

This Crane Is Well Used In Different Kinds Of Docks, 360 Degree Rotation To Adjust The Direction Of Your Cargo, Small Footprint, Electric And Hydraulic Two Systems, Of Course, You Can Also Choose A Control Mode, We Can Customize According To Your Needs. It Can Also Be Said To Be Used In Underwater Salvage And Various Marine Fisheries, Aquaculture, Construction, Etc.


Marine Knuckle Boom Crane: Versatile Applications in Marine Environments


The Marine Knuckle Boom Crane is an exceptional piece of equipment designed to meet the diverse demands of various marine applications. With its small footprint and compact structure, it is ideally suited for environments where space is limited, such as ports and docks. This crane’s flexibility in maneuvering allows it to navigate tight spaces, making it an invaluable asset for loading and unloading cargo on ships efficiently.

Key Features and Benefits:


360-Degree Rotation:

One of the standout features of this crane is its ability to rotate a full 360 degrees. This functionality enables operators to easily adjust the direction of cargo, facilitating smooth and precise handling, regardless of the dock's layout. The uninterrupted rotation ensures that operations can be conducted swiftly, minimizing downtime and enhancing overall productivity.


Efficient Loading and Unloading:

The Marine Knuckle Boom Crane showcases a high loading and unloading efficiency, making it perfect for fast-paced marine environments. This capability is essential for busy ports and shipping operations, where time is critical, and rapid turnaround times are essential for operational effectiveness.


Dual System Options:

Equipped with both electric and hydraulic systems, this crane offers versatility based on operational requirements. Operators can choose their preferred mode of control, allowing customization based on the specific needs of the project or environment. This adaptability guarantees optimal performance tailored to the task at hand.


Customization Opportunities:

Recognizing that different marine operations have unique requirements, we offer customization options for our Marine Knuckle Boom Crane. Whether you need specific load capacities, additional features, or tailored control mechanisms, we can modify the crane to fit your operational needs seamlessly.


Diverse Application Range:

Beyond traditional dock operations, this crane is also well-suited for underwater salvage missions and various marine fisheries. It can effectively support aquaculture activities, offering efficient handling of fish stocks and other marine products. Additionally, its robust design allows for reliable use in construction projects involving marine infrastructure, such as piers and offshore platforms.


In summary, the Marine Knuckle Boom Crane is not only a highly functional crane but also a flexible solution for diverse maritime applications. Its compact design, powerful performance, and customized options make it an essential tool for enhancing efficiency and productivity in challenging marine environments. Whether for cargo handling, underwater salvage, or construction operations, this crane stands out as a versatile asset for any maritime operation.
