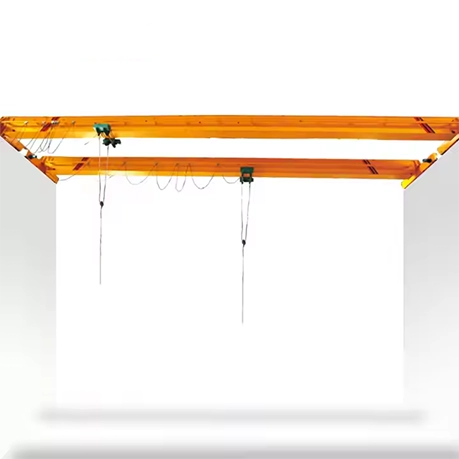

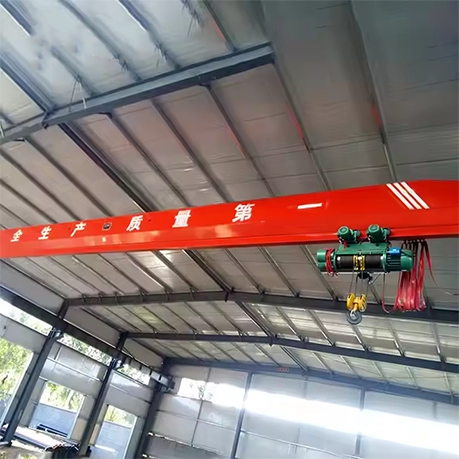

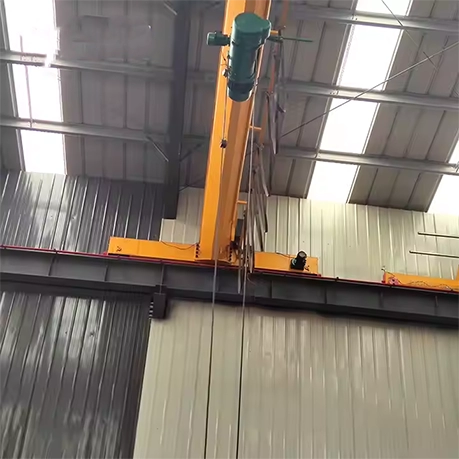

LDA electric single-girder crane is composed of girder weld by steel plate and I-steel, end girder, electric hoist and travelling mechanism. The electric hoist runs along the lower flange of the l-steel of the girder to accomplish article hoisting. It features light structure and easy installation and maintenance. This product has two operational methods. Ground or operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' Choice users' different conditions.
Advantage
> Material :Q235
> Frame: One whole type; Strong Steel box type
> Rust remove: Sand blast
> Crane traveling motor: Kuangyuan brand, Soft start type (support customize)
> Main beam box: High technique, one whole type, no welding
> Wheel: Vacuum casting, Inter medium frequency quenching
> Main electrical parts: Schneider brand (international)
Safety feature
> Weight overload protection,
> Polyurethane materials buffer,
> Crane traveling limit switch,
> Cross traveling limit switch,
> Lifting limit switch,
> Voltage lower protection function,
> Emergency stop system,
> Current overload protection system.
Customization:
We can design cranes meets your need, it would be very kind of you to give us the data needed listed below:
1. lifting capacity.
2. span length.
3. lifting height.(hook center to ground)
4. Power supply: Voltage.
5. Do you need rails? How long is the crane traveling distance?
6. Working condition: which material to lift? temprature?
7. Would be better if you have drawings of your plant.
After sales service:
1. Warranty: the quality of our cranes is guaranteed for one year. In this period, if any quality problem happens with correct operation, we will send spare parts to our customer free of charge.
2. After warranty, we will supply spare parts at cost prices to our customer.
This product is widely used in plants warehouses, material stocks to lift goods. It is prohibited to use the equipment in the
combustible, explosive or corrosives environment.

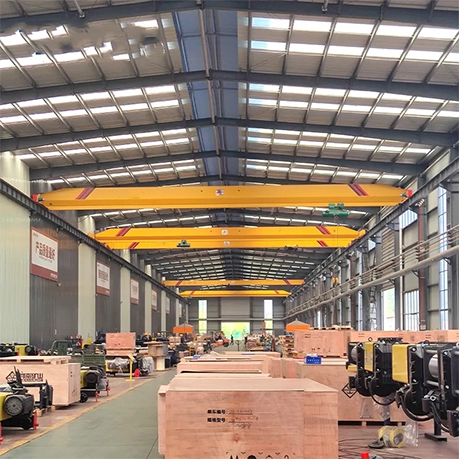

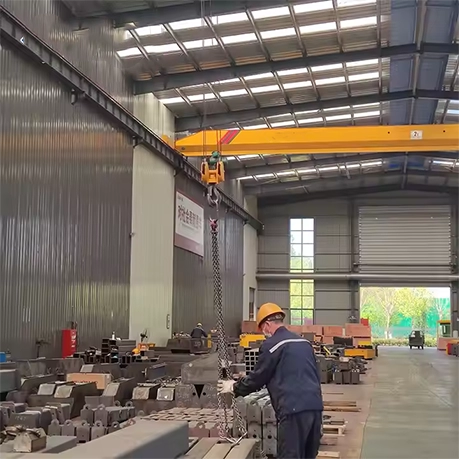

Single Girder Overhead Crane Application Scenarios
The Single Girder Overhead Crane is a versatile and efficient lifting solution designed for a variety of industrial applications. It is predominantly utilized in manufacturing plants, warehouses, and material storage facilities for the safe and reliable handling of goods. Below are some specific application scenarios where this crane excels:
Manufacturing Facilities:
In production environments, the Single Girder Overhead Crane plays a crucial role in the assembly and movement of heavy components. Whether lifting raw materials for assembly lines or transporting finished products to packaging areas, this crane enhances workflow efficiency and ensures safety during operations.
Warehousing Operations:
Within warehouses, the crane is essential for organizing inventory and managing material flows. It can be used to lift pallets or heavy goods from storage racks, facilitating quick retrieval and transportation to shipping areas. This improves inventory management and decreases manual handling, reducing the risk of workplace injuries.
Material Handling in Construction:
In construction sites, Single Girder Overhead Cranes are employed to move building materials such as steel beams, concrete blocks, and other heavy items. The crane’s ability to cover a wide area allows for efficient positioning and placement of materials, streamlining the construction process.
Steel and Metal Fabrication:
Steelworks and metal fabrication shops benefit greatly from the use of Single Girder Overhead Cranes to lift and maneuver heavy metal pieces. These cranes allow for precise positioning during welding and assembly processes, ensuring high-quality results while maintaining a safe working environment.
Automotive Industry:
The automotive sector utilizes Single Girder Overhead Cranes to transport parts and assemblies throughout the manufacturing process. Whether moving engine blocks or other components, the crane ensures that heavy items are moved swiftly and safely, contributing to seamless production line operations.
Safety Considerations:
While the Single Girder Overhead Crane is highly effective in these environments, it is important to note that usage is strictly prohibited in combustible, explosive, or corrosive environments. This ensures the safety of operators and the integrity of the equipment, preventing potential accidents or damage that could arise in hazardous conditions.
In summary, the Single Girder Overhead Crane is an indispensable tool across various industries, providing robust lifting capabilities that enhance productivity while ensuring safety in material handling operations.
